Shielding Bed Canopy | Naturell

Description

Properties

NATURELL from Swiss-Shield® is a semi-transparent, cotton fabric for attenuation of high-frequency (HF) and low-frequency radiation (LF).

Special features:

• 40 dB attenuation at 1GHz
• Width: 220 cm, depth: 220 cm, height: 220 cm (+/- 5% tolerance)
• Entrance: two overlapping openings
• Installation: Suspension from the ceiling at four points or support from underneath
• Rod pockets sewn at the top of all sides. To stabilize the shape you can insert poles (not supplied).
• Shields LF electric fields

Please choose carefully. This item is a special order and imported from Europe. As such we do not offer returns or refunds unless the product is faulty from manufacture. If you wish to see a sample of the fabric before ordering please contact us.

OEKO-TEX® STANDARD 100

If a textile article carries the OEKO-TEX® STANDARD 100 label, you can be certain that the article therefore is harmless for human health. In many cases the limit values for the STANDARD 100 go beyond national and international requirements. The criteria catalog is updated at least once a year and expanded with new scientific knowledge or statutory requirements. ZH015208475 OEKO-TEX® Label Check

Technical data

• Box shape for more room inside
• Size: width 220 cm, depth 220cm, height 220cm
• Attenuation: 40 dB at 1 GHz. Please check the table above for attenuation of other frequencies.
• Color: ECRU-White
• Raw materials: 82 % cotton, 17 % copper, 1 % silver
• Dimension stability: +/- 3 %

Care instructions

• Gentle cycle at 30°C
• Iron without steam at degree 1
• Tumble dry at low temperature
• No bleaching
• No chemical dry-cleaning
• Wash only with YShield’s special washing detergent TEXCARE, without enzymes or bleaching agents

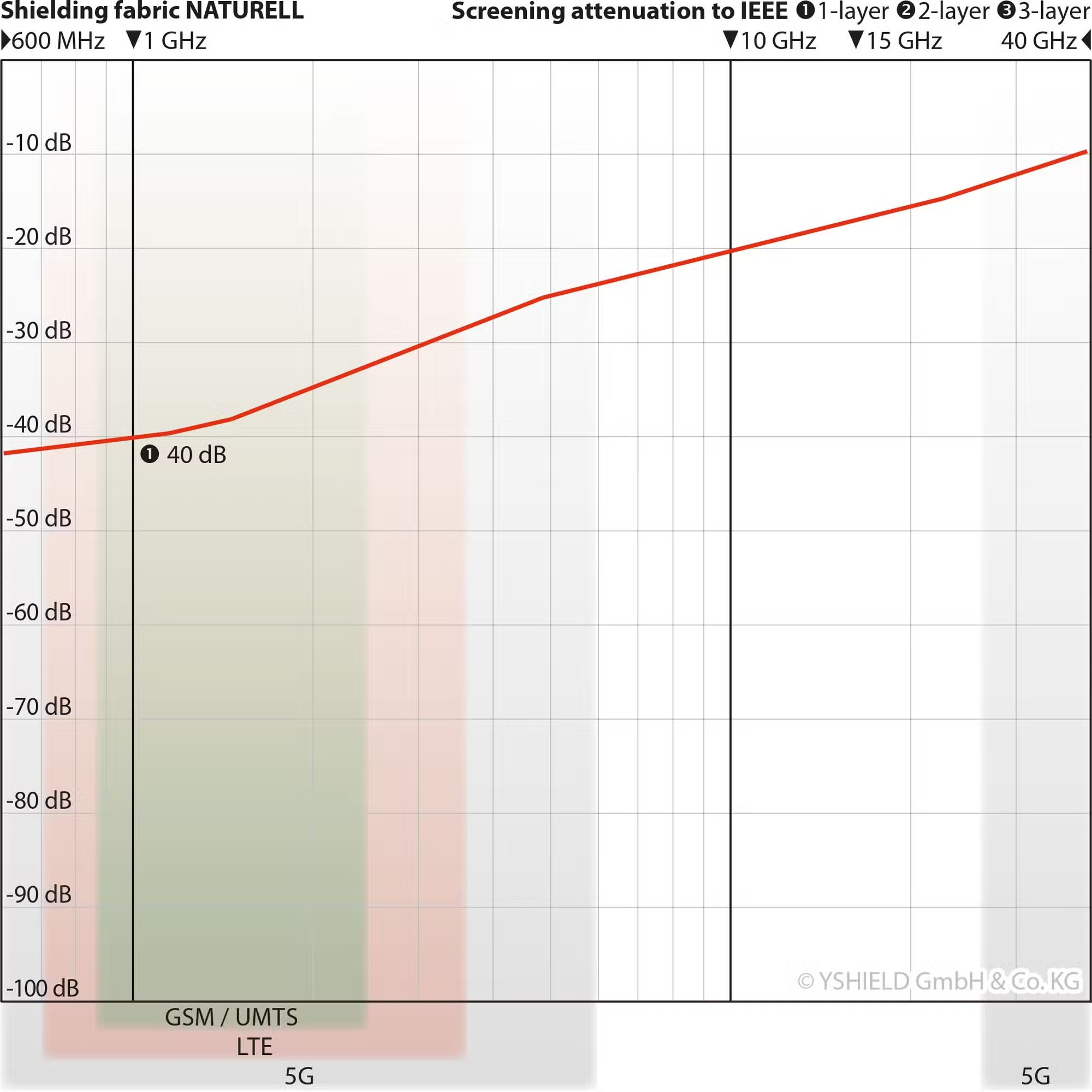

Shielding attenuation HF & LF

This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.

This product with an electrically conductive surface shields low-frequency alternating electric fields (LF).

This product does not need to be grounded.

Laboratory & expert report of shielding attenuation up to 40 GHz

YShield have invested in their own professional EMV laboratory. They not only use it to create laboratory screening reports but also to check each batch. Additionally, they have all their products checked by an independent, well-respected expert. Double checked for twice the safety. Please find links to the reports below.

Ready for 5G

Some companies offer “special” 5G-products. This products shields 5G-frequencies, even without advertising this! Find two gray bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).

LABORATORY ATTENUATION REPORT

EXPERT ATTENUATION REPORT
